BASICS
| Length Overall | 26.38 m / ft 86′ 7″ |
| Hull Length | 23.98 m / ft 78′ 8″ |
| Waterline Length | 20.9 m / ft 68′ 7″ |
| Max Beam | 6.4 m / ft 21′ 1″ |
| Beam | 6.47 m / ft 21’ 3” |
| Draft | 2.17 m / ft 7′ 1“ OR 1.95 m / ft 6’ 5” = 2.2 m |
| Fuel tank total | 11,000 litres / 2,907 US Gal |
| Freshwater total | 1,400 litres / 370 US Gal |
| Black water total | 400 litres / 106 US Gal + 125 litre |
| Grey water total | 850 litres |
| Max capacity | 24 Pax / 6133kg |
| CIYS Cook Island | 15 Pax including crews |
| Stern platform max cap | 650kg/550kg |
| Stern platform max cap | 650kg/550kg |
| Flybridge crane | 480kg |
| Engine room temp | Max 34 Degree |
| DISPLACEMENT | 75,400 KG / 166,229 LB |
| Tecma Silent Plus | 24Vdc Macerator |
DESCRIPTION
DRIVES: SHAFTS
ENGINE: MTU UP TO 3,900 PS
Standard Engine: 2 x MTU 12V 2000 M96X (2 x 2000ps)
Maximum Engine Power (Ps): 3,244 Ps / kW 2,386
2 x Coolmatic CR110 refrigerator Hoshizaki IM-30CNE icemaker Kenyon BBQ griddle
Two Frigoboat MS130 stainless steel drawer refrigerators with water cooled compressors

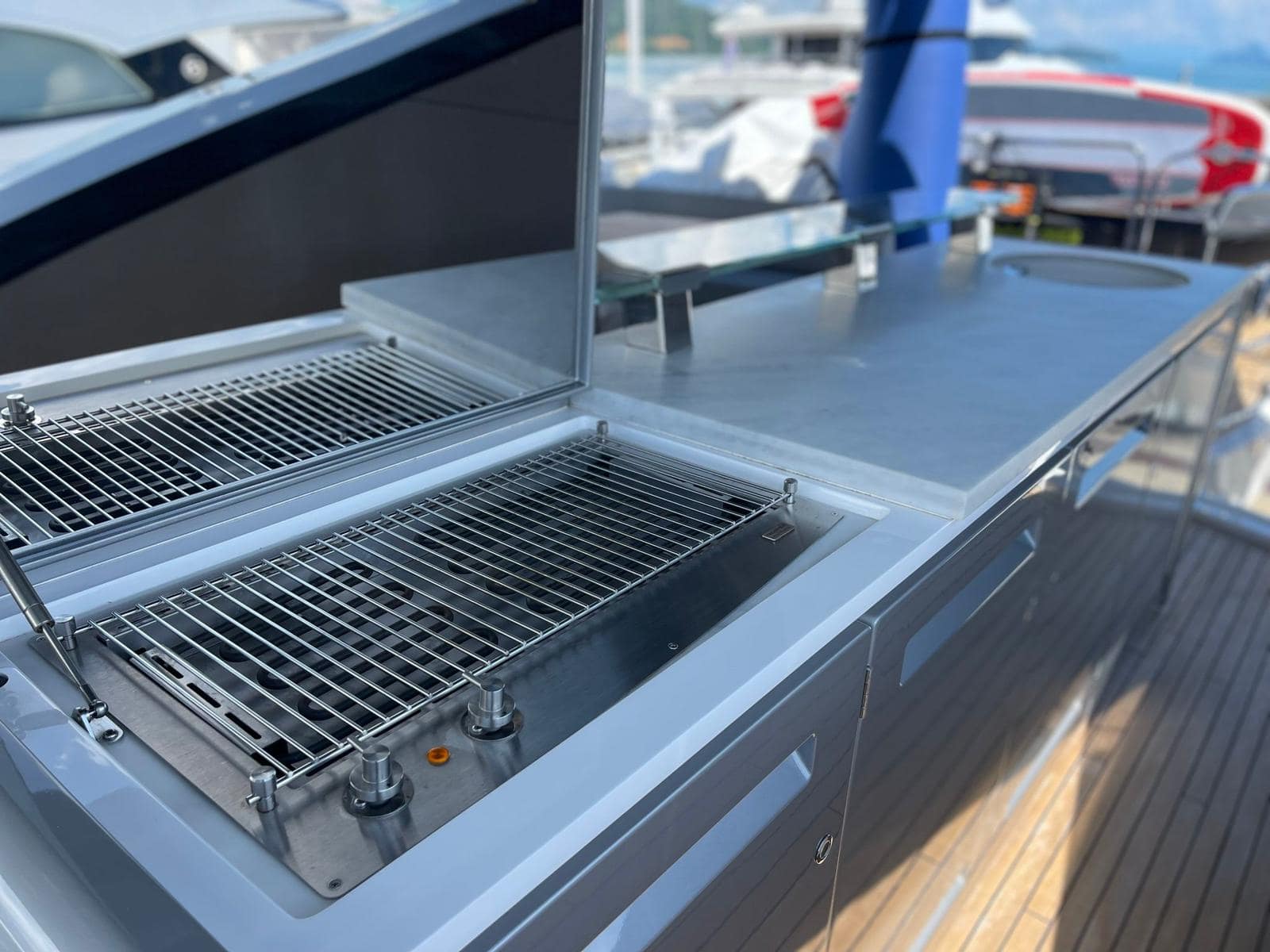

Marine Electric stainless steel BBQ grill – Techimpex BBQ74 – 740mm wide
CMC Fin Stabilisation – Electrically actuated 1.2m(2) fins
CMC Stabilis Electra Fin stabilization system HS60 – 5kW 1.20 meter square fins.
Underwater lights. Lumishore TIX403 LED x 8 – Dual colour white / Blue.
Shore plug: 100A shore power socket within the transom steps on an electric Glendinning system.
Marine Air chilled water air handler Aft Saloon 2 x AU24HV – 48,000BTU, 1 x AU36HV – 36,000BTU

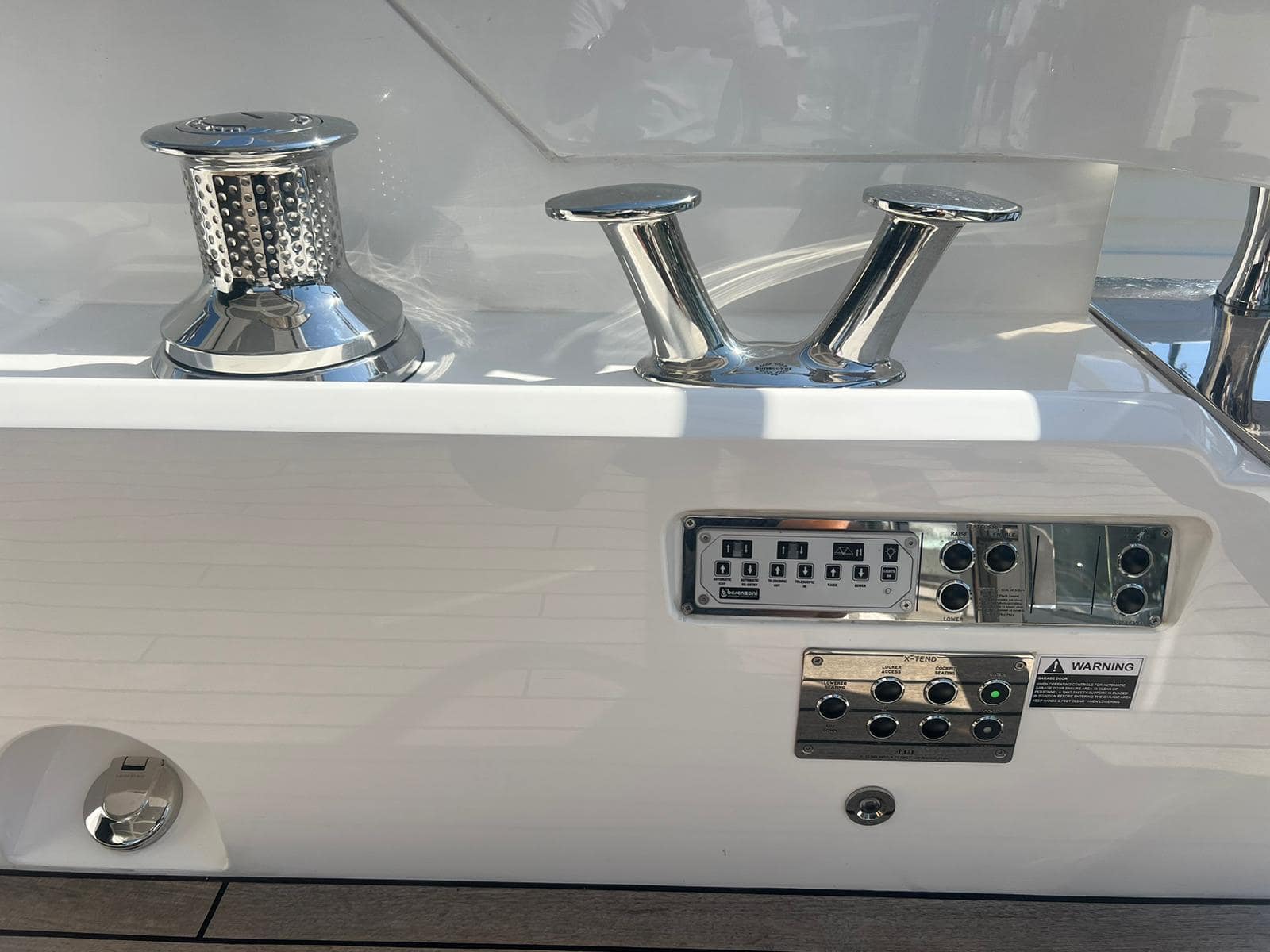

Anchor: Twin Lewmar V8 24 Volt DC Windlass galvanised claw steel anchors, the port anchor being 50kg and the starboard primary anchor being 80kg. The anchors were fitted with 60m and 100m respectively of galvanised steel chain of 12mm diameter; both were connected to suitable bitter ends in the cable locker. Vertical Gypsy and Capstan drum. Manual hand wheel brake and Devils Claw chain stopper.
The helm station is fitted with two 24” Simrad displays with OP50 controller for multifunction capability and radar / chart plotter usage.
The vessel is served by a Simrad 6’ open array radar. Simrad AP44 autopilot system.
Simrad HS100 VHF DSC system
Sanshin 24V twin beam HR-1012 searchlight
Sound Horn: AFI dual trumpet air horn (11018 XLPD/24V)
Sleipner hydraulic system with gearbox PTOs
CMC electrically actuated fin system
Separ Wasp fuel polishing systems for the main engines and generators
GRP Passerelle CE plate X-Tend Glendenning CMC display
Main Console:
Two Simrad NSO evo3S 24″ multifunctional touchscreen control with a OP50 remote keypad controller. Additional 10″ touchscreen controlling the Cm8 Sunseeker monitoring
Simrad Halo 6 Pulse Compression Radar 6ft 72nm with velocity track.
Simrad GS25 GPS Antenna.
Simrad Autopilot AP44 system.
Simrad HS100 VHF with DSC. 2.4M whip VHF antenna.
Simrad depth Speed/Depth transducer with water temp B744V and Sonarhub module.
Simrad structure scan 3D side scan transducers and Sonarhub 3D module.
Simrad Automatic Identification System NAIS500 Class B AIS Transponder system with dedicated 2.4M whip antenna and GPS receiver.
Simrad 110WX Ultrasonic Wind Sensor.
Richie Helmsman HF-743B Flush Mount Magnetic Compass.

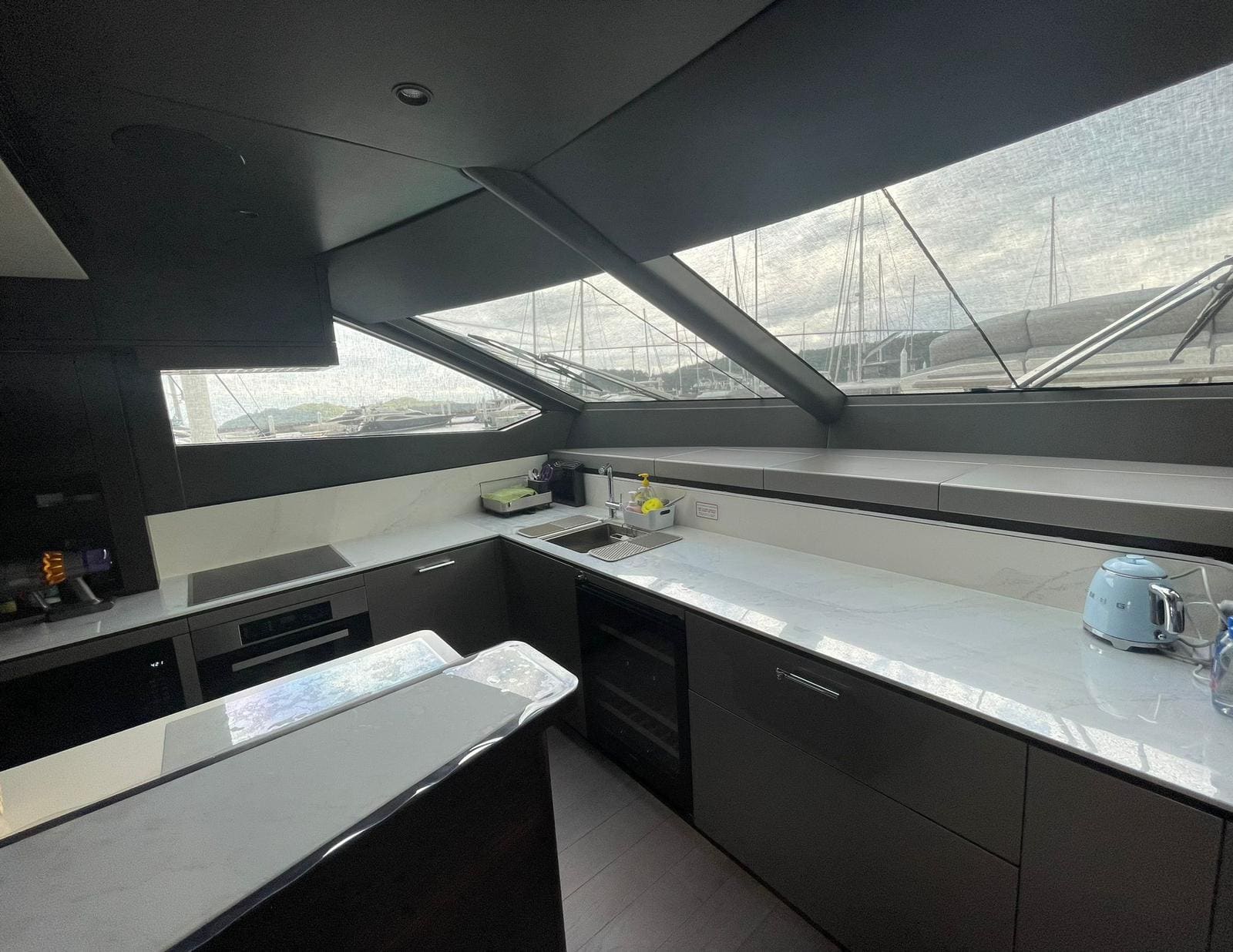

Custom Galley Integrated Refrigeration. Frigoboat G67290 with stainless steel interior. 250 litres fridge capacity and 120 litres freezer capacity
Additional under counter Custom Galley Integrated Refrigeration by Frigoboat – MS130 stainless steel drawer refrigerator
Miele Electric oven H2265B
Miele Microwave oven M2234SC
Ceramic hob – Miele KM6520FR 4 ring
Miele integrated extractor fan DA2360
Miele full size Dishwasher G7590 SCVi
Miele Wine Cooler for 34 bottles
